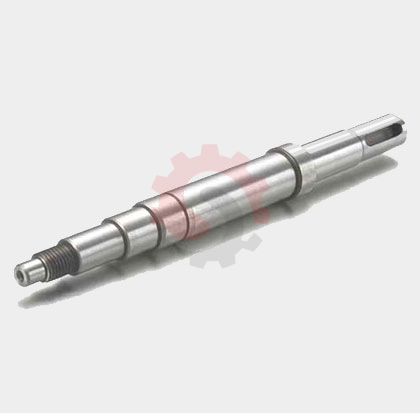

Spindle Shaft

Understanding Spindle Shafts

The spindle shaft is the heart of many machine tools, serving as the primary rotating component that holds either the cutting tool (in milling, drilling, grinding) or the workpiece (in lathes). Its accuracy directly dictates the precision achievable by the machine. Key performance characteristics include high rotational accuracy, stiffness to resist cutting forces, high-speed capability, and thermal stability.

Critical Requirements:

• Rotational Accuracy: Extremely low radial and axial runout is essential to ensure precise machining. Measured in microns (µm).
• Stiffness: Must resist deflection under cutting loads to maintain accuracy and prevent chatter. Achieved through robust design and material selection.
• Bearing Seats: Manufactured to extremely tight tolerances for diameter, roundness, and surface finish to ensure proper bearing fit and performance.
• Tool/Workpiece Interface: Precise tapers (e.g., ISO, HSK, BT) or chuck mounts are critical for accurate and repeatable tool/workpiece positioning.
• Dynamic Balance: Essential for high-speed operation to minimize vibration, ensure machining quality, and extend bearing life.
• Heat Treatment: Provides wear resistance on critical surfaces (bearing seats, tapers) and ensures core strength and dimensional stability.

Types:

• Milling Spindles: Typically designed to hold various tool holders (HSK, BT, CAT).
• Lathe Spindles: Designed to hold chucks or collets for rotating workpieces. Often feature a through-hole.
• Grinding Spindles: Operate at very high speeds and require exceptional balance and runout control to hold grinding wheels.

Shreeji Gears: Your Ahmedabad Spindle Shaft Specialist

We combine advanced manufacturing technology with rigorous quality control to produce spindle shafts that meet the highest precision standards.

Why Choose Shreeji Gears for Spindle Shafts?

• Ultra-Precision Grinding: Expertise in high-precision cylindrical (OD/ID), surface, and taper grinding to achieve micron-level tolerances and fine surface finishes.
• Advanced CNC Machining: Utilizing state-of-the-art CNC turning and milling centers for accurate pre-grinding operations and feature creation.
• Strict Runout Control: Manufacturing processes and inspection methods focused on minimizing radial, axial, and taper runout.
• Material & Heat Treatment Expertise: Selecting appropriate high-carbon alloy steels and applying optimized heat treatment cycles (case hardening, induction hardening) for stability, hardness, and toughness.
• Precision Bearing Seat Manufacturing: Ensuring exceptional roundness, cylindricity, and surface finish on bearing journals and shoulders.
• High-Precision Dynamic Balancing: Equipped to balance spindles to stringent ISO grades (G1.0, G0.4) for high-speed, vibration-free operation.
• Custom Manufacturing: Ability to manufacture complex spindle shafts based on detailed customer drawings and specifications.
• Rigorous Metrology & Inspection: Utilizing CMMs, roundness testers, surface profilometers, and specialized gauges for comprehensive quality verification.

General Technical Specifications (Customizable):

• Type: Custom Machine Tool Spindle Shaft.
• Material Grade: EN31, EN24, SAE 8620, 20MnCr5, Customer Specified Alloy/Tool Steel.
• Heat Treatment: Case Hardened (Carburized), Induction Hardened, Through Hardened. Specify hardness (HRC) and case depth.
• Runout Tolerance: Radial & Axial (e.g., < 2 µm, < 5 µm - depends on application).
• Bearing Seat Tolerances: Diameter (e.g., IT5, IT4), Roundness, Cylindricity (micron level).
• Taper Type: ISO, HSK, BT, CAT, Morse, Custom. Taper accuracy crucial.
• Balancing Grade: G1.0, G0.4 (ISO 1940) or as specified.
• Overall Dimensions: As per drawing.
• Surface Finish: Ra values specified for bearing seats, tapers, seal areas (e.g., Ra 0.2, Ra 0.4).

Achieve ultimate precision and performance in your machine tools. Rely on Shreeji Gears, your expert spindle shaft manufacturer in Ahmedabad. Contact us today to discuss your high-accuracy spindle requirements!
