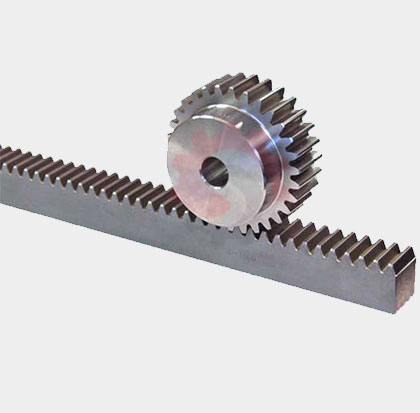

Rack & Pinion Gear
Rack & Pinion Gears for Precise Linear Motion
We manufacture high-accuracy straight and helical rack and pinion sets to convert rotary input into smooth, reliable linear travel.
- Accurate Linear Positioning
- Straight & Smooth Helical Options
- Induction Hardened for Durability
- Scalable Lengths for Long Travel
Manufacturing Capabilities
We produce rack and pinion sets to your exact specifications, ensuring optimal performance for your linear motion system. Helical racks are recommended for applications requiring high precision and quiet operation.
| Gear Types | Straight Tooth Rack & Pinion, Helical Tooth Rack & Pinion |
| Module Range | 1 to 12 Module |
| Rack Length | Up to 2000mm per section (sections can be joined) |
| Pressure Angle | 20° (standard), other angles on request |
| Materials | Carbon Steels (C45, EN8, EN9), Alloy Steels (EN24, SAE 8620), Stainless Steel |
| Heat Treatment | Teeth Induction Hardening, Case Hardening, Through Hardening |
| Finishing | Precision Milled or Ground for high accuracy |
| Accuracy Standard | To DIN/ISO standards, based on application needs |
Common Industrial Applications
Our robust rack and pinion sets are the backbone of precise linear motion in demanding industries:
- CNC Routers, Plasma & Laser Cutters
- Machine Tool Axis Drives (Lathes, Mills)
- Industrial Automation & Robotics
- Material Handling & Gantry Systems
- Lift Mechanisms & Elevators
- Automotive Steering Systems
- Inspection and Measurement Machines
- Sliding Gates and Actuators
Understanding Rack & Pinion Parameters
Key terms for specifying rack and pinion gears, which convert rotary motion to linear motion.
| Term | Definition & Use |
|---|---|
| Module / DP | Defines the tooth size. The module of the rack and the pinion must match exactly for proper meshing. |
| Pitch Line | An imaginary line on the rack where the tooth thickness equals the space width. It's the reference for mounting height. |
| Pressure Angle | The angle of force transmission between teeth, typically 20°. Must be the same for both rack and pinion. |
| Linear Travel | The distance the rack moves for one full rotation of the pinion. Calculated as: Pinion Pitch Diameter × π. |
| Pitch Accuracy | The precision of the tooth spacing. Total Pitch Error over 1 meter is a key metric for positioning accuracy. |
| Backlash | The clearance or "play" between mating teeth. Minimal backlash is crucial for high-precision positioning. |
| Helix Angle | For helical racks, this is the angle of the teeth. It must be equal and opposite for the mating pinion (e.g., Right-Hand rack, Left-Hand pinion). |
Why Teeth Hardening is Critical
The gear teeth are subjected to continuous rolling and sliding contact under load, which causes wear. Induction hardening is a heat treatment process that rapidly heats and quenches only the tooth surfaces. This creates a hard, wear-resistant outer layer while keeping the core of the gear tough and ductile to absorb shock loads. This process significantly extends the life and maintains the accuracy of the rack and pinion system, especially in continuous-duty applications.
Frequently Asked Questions
A straight rack has teeth perpendicular to its length, making it ideal for standard load and speed applications. A helical rack has angled teeth, which engage the pinion more gradually. This results in smoother, quieter operation, reduced vibration, and a higher load capacity, making it the preferred choice for high-speed, high-precision machinery like CNCs.
For travel distances longer than a single rack section, multiple racks are mounted end-to-end. We manufacture these racks with precisely machined ends and ensure consistent tooth pitch across sections, allowing for seamless pinion travel from one rack segment to the next.
Pitch accuracy refers to the precision of the spacing between adjacent teeth. High pitch accuracy is critical for linear motion systems because it minimizes positioning errors. Inaccurate pitch can lead to cumulative errors over the travel distance, affecting the final position's accuracy and causing inconsistent movement.
The Shreeji Gears Advantage
Our focus on precision manufacturing delivers linear motion systems you can rely on.
Linear Motion Precision
We specialize in the mechanics of linear drive systems. Using advanced CNC rack cutting and gear grinding, we achieve tight tolerances on pitch and tooth profile, minimizing backlash and ensuring the smooth, repeatable positioning accuracy your automated system demands.
Material & Hardening Expertise
A rack's performance depends on its material integrity. We select the optimal steel and apply controlled induction hardening to the teeth. This creates a superior wear-resistant surface while maintaining a tough core, ensuring long service life even under high cycle loads.
Complete System Solutions
We don't just sell parts; we provide solutions. We manufacture mating pinions for every rack we produce and can supply rack sections with matched ends for long-travel applications. This system-based approach guarantees compatibility and simplifies your assembly process.
A Deeper Dive into Rack & Pinion Technology
Understanding the core concepts helps in selecting the right system for your machine.
How Does a Rack and Pinion Work?
A rack and pinion gearset is a classic mechanical converter. It consists of two components: the rack, a flat, toothed bar, and the pinion, a standard circular gear. When a rotary force is applied to the pinion, it meshes with the rack's teeth and pushes it, transforming the input rotation into perfect linear motion. Conversely, applying a linear force to the rack will cause the pinion to rotate. This simple, effective principle is the foundation of countless machines.
Straight vs. Helical Racks: An Analogy
Choosing between straight and helical racks is similar to choosing between a spur gear and a helical gear.
- Straight Tooth Rack: The teeth engage along their entire face at once. This is strong and simple but can be noisier and less smooth at high speeds. It's excellent for actuators, gates, and standard positioning tasks.
- Helical Tooth Rack: The angled teeth engage gradually, starting at one end and progressing across the tooth. This leads to a smoother transfer of force, lower noise, reduced vibration, and the ability to handle higher loads and speeds. This is why helical racks are the standard for precision CNC machinery.
Importance of Mounting and Alignment
The performance of even the highest quality rack and pinion is dependent on its installation. The rack must be mounted perfectly straight on a rigid, flat surface. The pinion's centerline must be precisely parallel to the rack's face and set at the correct mounting height to ensure proper tooth engagement (meshing). Misalignment will cause excessive, uneven wear and will drastically reduce the system's accuracy and lifespan.
"The helical rack and hardened pinion we ordered for our gantry robot were top-notch. The movement is incredibly smooth, and the positional accuracy has improved our assembly process. Shreeji Gears delivered on time and to our exact drawings."— Chief Engineer, Automation Systems Integrator
Get a Fast, Accurate Quote
Provide your rack and pinion specifications for a competitive, no-obligation quote.
For the fastest service, please email your technical drawing to support@shreejigears.com. If you don't have a drawing, include these key parameters for your set:
- Gear Type: (Straight or Helical)
- Module or Diametral Pitch (DP)
- For the Rack: Length, Face Width, Material
- For the Pinion: Number of Teeth, Face Width, Bore/Shaft Details
- Heat Treatment: (e.g., Teeth Induction Hardened)
- Required Accuracy & Quantity (Sets)
