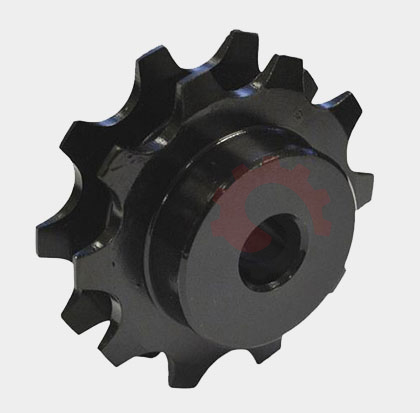

Double Plus Sprocket

Understanding Double Plus Sprockets

Double Plus sprockets are engineered for a specific type of conveyor chain known as Double Plus® chain (or free-flow chain). This chain design incorporates two roller sizes: smaller inner rollers that carry the chain tension and larger outer (top) rollers that support the conveyed product.

Key Characteristics & Function:

• Specialized Tooth Profile: The sprocket teeth are designed to mesh only with the smaller, inner load-carrying rollers of the Double Plus chain.
• Free-Rotating Top Rollers: The design ensures that the large top rollers of the chain do not contact the sprocket teeth, allowing them to rotate freely even when the chain is driven by the sprocket.
• Accumulation Capability: This free rotation of the large top rollers enables products on a conveyor line to stop (accumulate) against a barrier while the chain continues to run underneath without excessive friction or product damage. This makes them ideal as accumulation-conveyor-sprockets.
• Smooth Product Transfer: The large, free-rolling top surface provides a smooth platform for moving goods, crucial for smooth-transfer-sprocket applications.

Applications:

Double Plus sprockets are primarily used in accumulation conveyor systems found in automotive assembly lines, electronics manufacturing, food and beverage processing, logistics, warehousing, and packaging applications where items need to pause or buffer during the conveying process.

Shreeji Gears: Your Ahmedabad Double Plus Sprocket Specialist

We manufacture Double Plus sprockets with the precision required to ensure proper chain engagement and facilitate smooth, low-friction conveyor operation.

Why Choose Shreeji Gears for Double Plus Sprockets?

• Accurate Tooth Profiles: Utilizing specialized tooling and precision machining (hobbing, milling) to create the unique tooth form required for Double Plus chains.
• Material Selection: Manufacturing from robust steel grades (Carbon Steel, Stainless Steel) to handle conveyor loads and ensure durability.
• Tooth Hardening: Recommending and providing induction hardening for sprocket teeth to maximize wear life, especially in continuous operation conveyors.
• Bore & Hub Options: Supplying sprockets with pilot bores, finished bores with keyways, and other mounting configurations as required.
• Custom Manufacturing: Ability to produce custom Double Plus sprockets to specific chain sizes (e.g., RF2040V, RF2060S), tooth counts, materials, and bore requirements.
• Quality Control: Rigorous inspection focusing on tooth profile accuracy, concentricity, and dimensional tolerances critical for free-flow chain interaction.

General Technical Specifications (Customizable):

• Chain Compatibility: Double Plus Chains / Free Flow Chains (e.g., RF2040V, RF2050S, RF2060V, RF2080S series and equivalents).
• Tooth Count: Standard ranges available (typically 8 teeth upwards).
• Material: Carbon Steel (C45, EN8 etc.), Stainless Steel (SS304, SS316).
• Tooth Hardening: Recommended (Induction Hardened).
• Bore Type: Pilot Bore, Finished Bore (Keyed/Plain).
• Hub Style: Type A (Plate), Type B (Hub one side), Type C (Hub both sides).
• Standards: Manufactured to suit specific Double Plus chain dimensions.

Optimize your accumulation conveyor performance with specialized sprockets. Choose Shreeji Gears, the expert double plus sprocket manufacturer in Ahmedabad. Contact us today for your large-roller-sprocket and smooth-transfer-sprocket needs!
