Understanding Taper Lock Sprockets: The Advantage of Easy Mounting

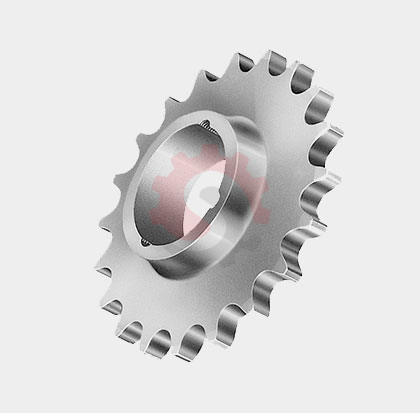

Taper Lock sprockets are a type of roller chain sprocket specifically designed to be used with a Taper Lock® bush system. The sprocket has a tapered bore, and a corresponding tapered bush fits into this bore. When screws are tightened, they draw the bush into the sprocket's taper, simultaneously clamping the bush tightly onto the shaft and locking the sprocket securely to the bush.

How Taper Lock Works:

• Tapered Bore Sprocket: The sprocket features a precisely machined internal taper.
• Tapered Bush: A split, tapered bush matches the sprocket's bore. The bush has a straight bore sized for the shaft and includes threaded holes.
• Mounting Screws: Screws pass through unthreaded holes in the sprocket hub and engage with the threaded holes in the bush. Tightening these screws pulls the bush into the sprocket's taper.
• Secure Clamping: This action creates a powerful friction grip on the shaft and rigidly locks the sprocket axially and radially.

Advantages of Taper Lock Mounting:

• Easy Installation & Removal: Significantly faster and simpler than fitting bored-to-size sprockets with keys. No special tools required beyond hex keys.
• Secure Grip: Provides a strong, concentric grip on the shaft, minimizing vibration.
• No Keyway/Set Screw Needed (on Sprocket): Simplifies sprocket inventory and eliminates potential weak points associated with keyways. (Note: The bush itself requires a keyway on the shaft).
• Interchangeability: Standard Taper Lock bushes are widely available and interchangeable between different components (sprockets, pulleys, couplings) using the same bush size.
• Accommodates Shaft Tolerances: The clamping action can accommodate minor variations in shaft diameter.
• Reduced Downtime: Quick replacement minimizes machine downtime during maintenance.

Considerations:

• Requires Taper Lock Bush: The bush is a separate component that must be purchased along with the sprocket.
• Assembly Length: The bush adds slightly to the overall length of the assembly on the shaft compared to a Type B sprocket.
• Correct Bush & Torque: Using the correct bush size and tightening screws to the recommended torque is essential for proper function and safety.

Shreeji Gears: Your Expert Taper Lock Sprocket Manufacturer in Ahmedabad

As a specialized manufacturer of power transmission components in Ahmedabad, Shreeji Gears excels in producing high-precision Taper Lock sprockets.

Why Choose Shreeji Gears for Taper Lock Sprockets?

• Precision Taper Boring: Expertise in machining accurate taper bores to ensure perfect fit and function with standard Taper Lock bushes.
• Quality Materials: Utilizing high-grade Carbon Steels (C45, EN8), Alloy Steels (EN19, EN24), or Stainless Steel for durability and strength.
• Adherence to Standards: Manufacturing sprockets to ANSI, BS, and ISO standards for pitch, tooth profile, and dimensions.
• Full Range Available: Offering Taper Lock options for Simplex, Duplex, and Triplex sprockets across a wide range of pitches and tooth counts.
• Optional Teeth Hardening: Providing induction hardened teeth for increased wear resistance and longer life in demanding applications.
• Strict Quality Control: Ensuring dimensional accuracy, bore concentricity, tooth profile conformity, and material quality.
• Custom Manufacturing: Capability to produce custom Taper Lock sprockets if standard sizes do not meet specific requirements.

General Technical Specifications (Customizable):

• Standards: ANSI (e.g., 35 to 160), BS/ISO (e.g., 06B to 48B) - Availability varies by pitch
• Types: Simplex, Duplex, Triplex
• Pitch Range: e.g., 3/8" (9.525mm) to 2" (50.8mm) - Common ranges
• Material: C45, EN8, EN19, EN24, Stainless Steel
• Tooth Range: Wide range available, typically starting from ~10-12 teeth upwards.
• Bore: Taper Bore designed to accept standard Taper Lock bush series (e.g., 1008, 1108, 1210, 1610, 2012, 2517, 3020, 3535, 4040, 5050)
• Heat Treatment: Teeth Induction Hardened (Optional, typically 45-55 HRC)
• Surface Finish: Self-Colour, Black Oxide

Need sprockets with fast, easy, and secure mounting? Opt for Taper Lock sprockets from Shreeji Gears, your reliable Taper Lock sprocket manufacturer in Ahmedabad. Contact us today to discuss your requirements and get a competitive quote!
