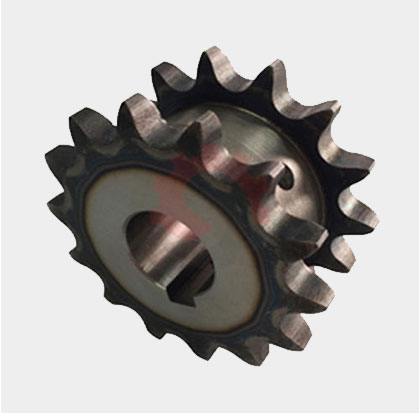

Double Pitch Sprocket

Understanding Double Pitch Sprockets

Double pitch sprockets are designed to mesh with double pitch roller chains, which have link plates with twice the pitch length of standard ANSI roller chains but maintain the same roller diameter, pin diameter, and plate thickness. This extended pitch design offers several advantages for specific applications:

Key Characteristics:

• Extended Pitch: The primary feature is having twice the pitch of a comparable standard sprocket/chain (e.g., a C2080H chain/sprocket has double the pitch of an ANSI 80 chain/sprocket).
• Chain Types: Designed for use with either:
  • Standard Roller Double Pitch Chain: Uses standard diameter rollers (e.g., C2040, C2050, C2060H).
  • Carrier Roller Double Pitch Chain: Uses larger diameter carrier rollers, often used directly on conveyor supports (e.g., C2042, C2052, C2062H).
• Tooth Form: Sprockets with an even number of teeth typically have a "double cut" tooth form, engaging every other chain roller. Sprockets with an odd number of teeth, or those designed for carrier roller chains, often have a "single cut" form, engaging every roller.
• Weight & Cost Savings: For long conveyor runs, double pitch chains are lighter and often more cost-effective than using standard pitch chains.

Advantages:

• Ideal for long center distance conveyor applications.
• Lighter chain weight compared to standard pitch for similar strength.
• Cost-effective solution for many conveying tasks.

Shreeji Gears: Your Ahmedabad Double Pitch Sprocket Specialist

We manufacture a comprehensive range of double pitch sprockets to industry standards, ensuring reliable performance in your conveyor and power transmission systems.

Why Choose Shreeji Gears for Double Pitch Sprockets?

• Precision Machining: Utilizing CNC hobbing and milling to create accurate tooth profiles for smooth chain engagement and reduced wear.
• Material Quality: Manufacturing sprockets primarily from high-quality Carbon Steel (like C45, EN8) or Stainless Steel for corrosion resistance.
• Tooth Hardening Options: Offering induction hardening of teeth for increased wear resistance and extended sprocket life, especially crucial for abrasive environments or high cycle applications.
• Compatibility: Ensuring sprockets are compatible with standard (S-type) and carrier (R-type) double pitch roller chains.
• Bore & Hub Configurations: Providing sprockets with pilot bores, finished bores to size, keyways, grub screw holes, and taper lock bush options.
• Custom Manufacturing: Ability to produce custom double pitch sprockets based on specific requirements, drawings, or samples, including non-standard tooth counts or materials.
• Quality Control: Inspecting critical dimensions, tooth profiles, concentricity, and material specifications.

General Technical Specifications (Customizable):

• Chain Series Compatibility: C2040, C2042, C2050, C2052, C2060H, C2062H, C2080H, C2082H, C2100H, C2102H, C2120H, C2122H, C2160H, C2162H & more.
• Tooth Count: Wide range available (typically 8 teeth upwards).
• Material: Carbon Steel (C45, EN8, etc.), Stainless Steel (SS304, SS316).
• Tooth Hardening: Optional (Induction Hardened).
• Bore Type: Pilot Bore, Finished Bore (Keyed/Plain), Taper Lock Bush.
• Hub Style: Type A (Plate), Type B (Hub one side), Type C (Hub both sides).
• Standards: ANSI B29.1, ISO 606, DIN 8187 equivalent for double pitch.

Ensure smooth and efficient operation of your conveyor systems. Partner with Shreeji Gears, your reliable double pitch sprocket manufacturer in Ahmedabad. Contact us today to discuss your extended pitch sprocket requirements and get a competitive quote!
