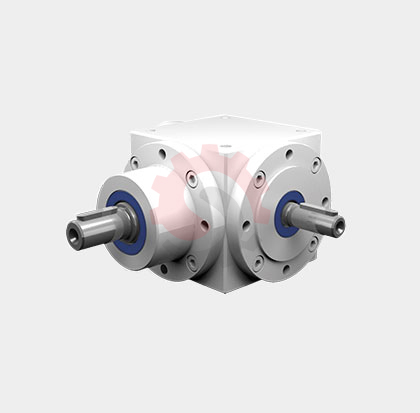

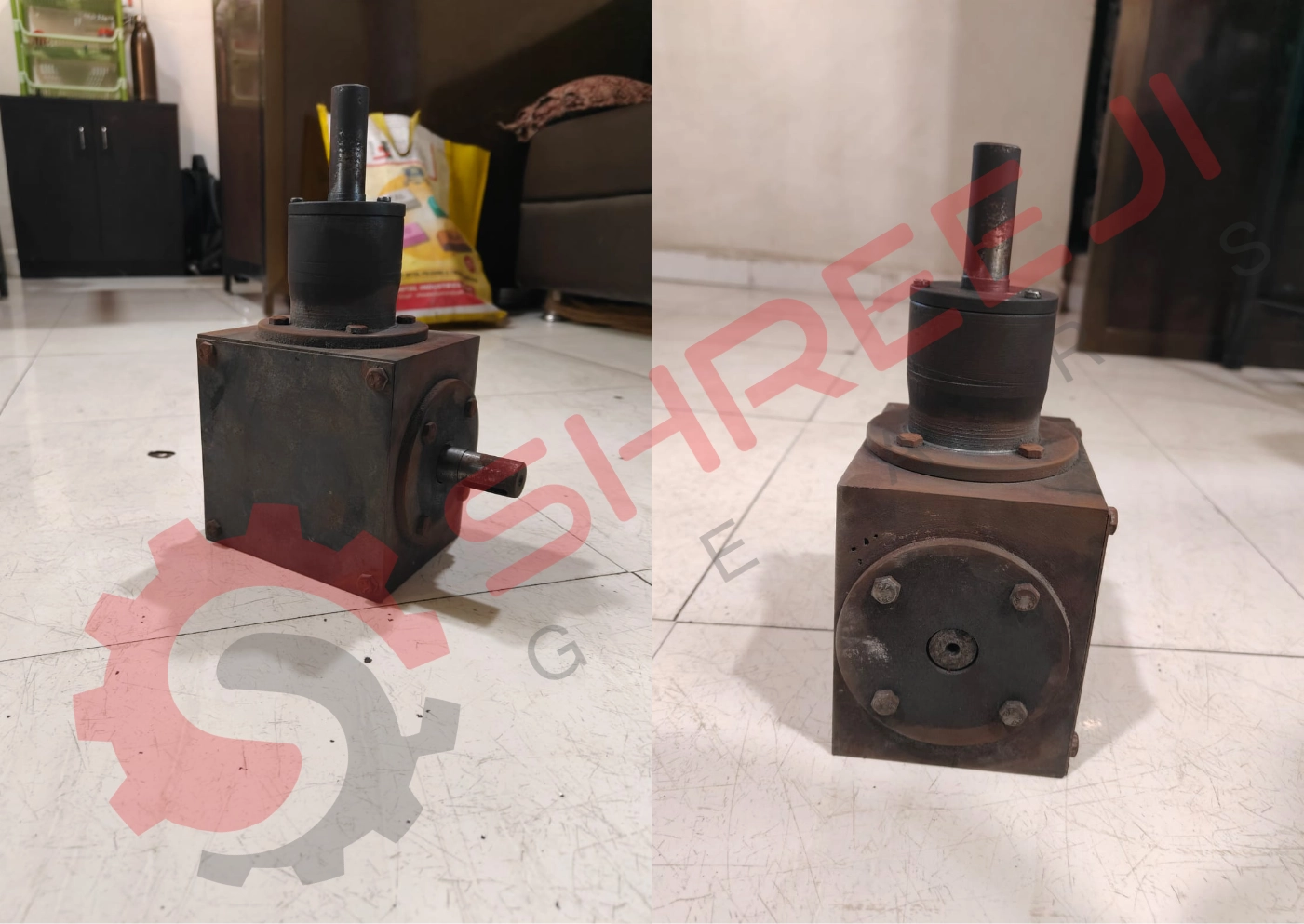

Bevel Gearbox

Understanding Bevel Gearboxes: Right-Angle Power Transmission

Bevel gearboxes are specifically designed to change the direction of power transmission, most commonly by 90 degrees. The core components are bevel gears (either straight tooth or spiral tooth) which mesh to transfer rotational motion between non-parallel, intersecting shafts.

Key Features and Types:

• Right-Angle Configuration: The primary function is to transmit power around a corner, making them essential where space constraints or machine layout requires a perpendicular drive connection.
• Straight vs. Spiral Bevel Gears:
  • Straight Bevel Gearboxes: Use simpler straight-toothed gears, suitable for lower speeds and moderate loads. More economical.
  • Spiral Bevel Gearboxes: Employ curved-tooth spiral bevel gears, offering smoother, quieter operation, higher load capacity, and suitability for higher speeds. Preferred for demanding applications.
• Bevel-Helical Gearboxes: For applications requiring both a right-angle turn and significant speed reduction, a bevel gear input stage is often combined with subsequent helical gear stages. This combines the directional change capability of bevel gears with the high efficiency and reduction capacity of helical gears.

Advantages:

• Compact Right-Angle Solution: Efficiently packages a change in drive direction.
• Speed & Torque Modification: Can be designed for 1:1 ratio (direction change only) or various reduction ratios.
• Robustness: Well-suited for transmitting substantial power.

Considerations:

• Thrust Loads: Bevel gears generate significant axial thrust forces which must be managed by robust bearings and housing design.
• Efficiency: Efficiency is generally good, especially with spiral bevel gears, but typically lower than parallel shaft helical gearboxes.
• Mounting Precision: Accurate alignment of input and output shafts is critical for optimal gear mesh and longevity.
• Heat Generation: Particularly at higher speeds and loads, proper lubrication and potential cooling might be necessary.

Shreeji Gears: Your Expert Bevel Gearbox Manufacturer in Ahmedabad

As a specialized ahmedabad-gear-manufacturer, Shreeji Gears has the engineering knowledge and manufacturing infrastructure to produce high-performance bevel gearboxes.

Why Choose Shreeji Gears for Bevel Gearboxes?

• Design Expertise: Capability to design standard and custom bevel gearbox solutions, including complex bevel-helical configurations, tailored to application requirements (torque, speed, ratio, duty cycle).
• Premium Materials: Use of high-grade Cast Iron (GG20/25) or fabricated steel for rigid housings, and specifically selected hardened & ground/lapped alloy steels (EN24, EN353, SAE 8620, etc.) for bevel gears ensuring strength and durability.
• Precision Bevel Gear Manufacturing: Utilizing specialized gear cutting machinery (like Gleason or Klingelnberg systems) and processes (lapping/grinding) for accurate bevel gear tooth geometry and optimal contact patterns.
• Robust Construction: Housings designed for rigidity to maintain gear alignment under load, coupled with high-quality bearings to handle operational forces including thrust loads.
• Quality Assurance: Rigorous inspection throughout the manufacturing process, including gear tooth contact pattern verification (using marking compound), backlash checks, and performance testing (noise, temperature).
• Application Versatility: Supplying bevel gearboxes for diverse industries such as material handling, packaging machinery, printing presses, cooling towers, agricultural equipment, and various industrial drives requiring right-angle transmission.
• Customization: Offering tailored solutions regarding ratios, shaft configurations (solid, hollow, special dimensions), mounting arrangements (foot, flange), materials, paint specifications, and integration features.

General Technical Specifications (Customizable):

• Types: Straight Bevel Gearbox, Spiral Bevel Gearbox, Bevel-Helical Gearbox.
• Shaft Angle: Primarily 90 degrees (other angles possible on custom basis).
• Size Range: Wide range catering to various torque requirements.
• Gear Ratios: From 1:1 up to high ratios in multi-stage designs.
• Power Ratings: Suitable for a broad spectrum of power requirements.
• Mounting: Foot, Flange (various types), Shaft Mounted options.
• Shaft Options: Solid input/output, Hollow output (keyed or shrink disc).
• Lubrication: Grease or Oil lubrication depending on size, speed, and orientation.

Need an efficient and durable right-angle drive solution? Connect with Shreeji Gears, your reliable bevel gearbox manufacturer in Ahmedabad. Contact us today to discuss your specific application and get a customized quotation!
