Sleeve Coupling

Understanding Sleeve Couplings

Sleeve couplings are one of the simplest types of rigid shaft couplings. They function by fitting snugly over the ends of the two shafts to be joined, secured typically by keys and set screws (for solid sleeves) or clamping bolts (for split sleeves).

Key Characteristics:

• Rigid Connection: Provides a direct, solid connection between shafts with no flexibility.
• Zero Misalignment Capability: Requires shafts to be in near-perfect alignment during installation and operation. Any misalignment can cause high stress and premature failure of shafts or bearings.
• Simple Design: Consists of a single sleeve (solid type) or two halves (split type) and fasteners.
• Cost-Effective: Generally the most economical type of coupling due to its simplicity.
• Compact Size: Offers a small outside diameter for the torque transmitted.
• Ease of Installation (Split Type): Split sleeve couplings (Muff couplings) can be installed or removed without moving the connected machinery.

Types:

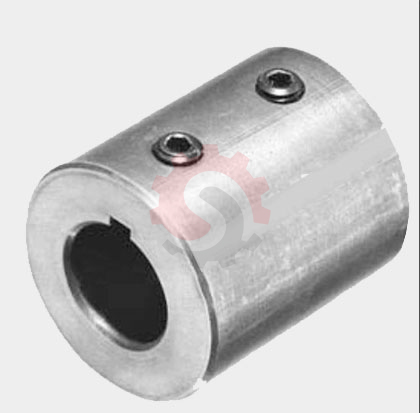

• Solid Sleeve Coupling: A single piece cylindrical sleeve. Requires axial access to slide onto shaft ends.
• Split Sleeve Coupling (Muff Coupling): Made in two halves that bolt together around the shafts. Allows for installation where axial access is limited.

Shreeji Gears: Your Ahmedabad Sleeve Coupling Specialist

We manufacture high-quality sleeve couplings ensuring precise fits and reliable performance for your rigid connection needs.

Why Choose Shreeji Gears for Sleeve Couplings?

• Material Options: Manufacturing sleeve couplings from quality Cast Iron (CI Gr. FG200/260) and various grades of Steel (Carbon Steel, Alloy Steel) based on application requirements.
• Precision Boring: Ensuring accurate bore diameters and tolerances for a proper interference or clearance fit as required.
• Accurate Keyway Cutting: Machining standard or custom keyways to transmit torque effectively.
• Solid and Split Designs: Offering both solid sleeve and split sleeve (muff coupling) configurations.
• Custom Manufacturing: Ability to produce sleeve couplings to specific dimensions, materials, and tolerances based on customer drawings or requirements.
• Quality Control: Strict checks on dimensions, bore concentricity, material quality, and keyway accuracy.
• Competitive Pricing: Providing cost-effective solutions for basic rigid shaft connection needs.

General Technical Specifications (Customizable):

• Type: Solid Sleeve, Split Sleeve (Muff Coupling).
• Material: Cast Iron (CI), Steel (Carbon/Alloy).
• Bore Range: Wide range available, manufactured to order (e.g., 10mm to 300mm+).
• Torque Rating: Dependent on size, material, and key/fastener strength.
• Max Speed: Suitable for low to moderate speeds; balancing may be required for higher speeds.
• Misalignment Capability: None - Intended for perfectly aligned shafts.
• Fasteners: Set Screws, Keys (Solid); Bolts, Keys (Split).

For simple, robust, and economical rigid shaft connections where alignment is assured. Choose Shreeji Gears, your expert sleeve coupling manufacturer in Ahmedabad. Contact us today to discuss your specific rigid coupling requirements!
