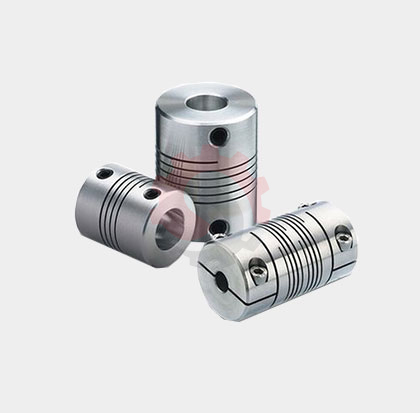

Beam Coupling

Understanding Beam Couplings

Beam couplings achieve flexibility through one or more helical slots machined into a single cylindrical piece of material. This allows the coupling to bend and flex, accommodating misalignment between connected shafts while transmitting torque torsionally. The absence of moving parts or separate components ensures inherent zero backlash.

Key Advantages:

• Zero Backlash: The single-piece design eliminates any play or backlash, crucial for precise motion control and positioning.
• Single Piece Construction: Simple, robust design with no assembly required and no parts to fail or wear independently.
• Maintenance-Free & No Lubrication: Requires no maintenance or lubrication throughout its service life.
• Low Inertia: Lightweight design (especially Aluminium versions) results in low inertia, beneficial for dynamic applications.
• Misalignment Accommodation: Capable of handling moderate levels of angular, parallel, and axial shaft misalignment.
• Cost-Effective Solution: Offers a good balance of performance and cost for suitable applications.

Considerations:

• Lower Torque Capacity: Generally suited for lower torque applications compared to disc, diaphragm, or gear couplings.
• Lower Torsional Stiffness: Can be less torsionally stiff than some other metallic coupling types, depending on the cut pattern and material.
• Potential for Fatigue: Like any flexible element, subject to fatigue failure if operated beyond its misalignment or torque limits.

Shreeji Gears: Your Ahmedabad Beam Coupling Specialist

We manufacture high-quality beam couplings using precision machining processes for consistent performance and reliability.

Why Choose Shreeji Gears for Beam Couplings?

• Precision Machining: Utilizing CNC technology to accurately machine couplings from solid bar stock of Aluminium or Stainless Steel.
• Accurate Helical Cutting: Precise creation of single or multiple helical cuts to achieve desired flexibility and performance characteristics.
• Material Options: Offering couplings in both Aluminium Alloy (lightweight, good corrosion resistance) and Stainless Steel (higher torque, better corrosion resistance).
• Variety of Cut Patterns: Manufacturing couplings with single beam or multiple beam designs to optimize for stiffness, torque, or misalignment needs.
• Attachment Options: Providing couplings with standard set screw attachments or clamp-style hubs for secure shaft gripping without damaging shafts.
• Custom Bore Sizes: Offering a wide range of metric and imperial bore sizes, often available from stock or quickly manufactured.
• Application Suitability: Ideal as an encoder-coupling, for light-duty servo motors, stepper motors, and various instrumentation needs.

General Technical Specifications (Customizable):

• Type: Beam Coupling / Helical Coupling.
• Material: Aluminium Alloy (e.g., 6061-T6, 7075-T6), Stainless Steel (e.g., 303, 304).
• Cut Pattern: Single Beam, Multiple Beam (e.g., 3-beam, 6-beam).
• Attachment: Set Screw, Clamp Style.
• Bore Range: Typically smaller sizes (e.g., 3mm to 25mm or larger upon request).
• Torque Rating: Suitable for low to moderate torque applications (Specify requirements in Nm).
• Max Speed: Good speed capability, suitable for typical motor/encoder speeds.
• Misalignment: Moderate Angular (e.g., up to 5°), Parallel (e.g., up to 0.25mm), Axial (e.g., up to 0.25mm) - Varies with size and design.
• Temperature Range: Dependent on material (Aluminium: ~ -40°C to +120°C, SS: wider range).

Achieve precise, zero-backlash motion transfer for your instrumentation and light-duty drives. Select Shreeji Gears, your reliable beam coupling manufacturer in Ahmedabad. Contact us today for standard or custom beam coupling solutions!
