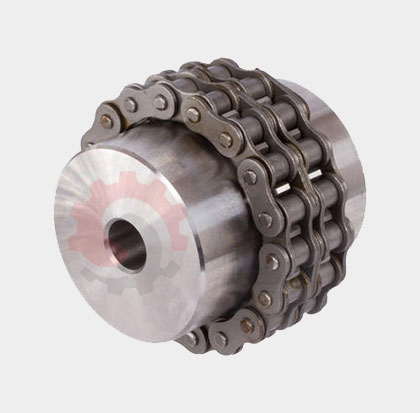

Roller Chain Coupling

Understanding Roller Chain Couplings

A roller chain coupling works on the principle of connecting two shaft-mounted sprockets with a double-strand roller chain. The inherent clearances between the chain pins, bushings, rollers, and sprocket teeth allow for slight shaft misalignment while transmitting torque.

Key Advantages:

• High Torque Capacity: Can transmit high torque relative to their physical size due to the strength of the chain and sprockets.
• Simple Construction: Consists of only three main parts: two sprockets and one chain.
• Ease of Assembly/Disassembly: The chain can be easily connected or disconnected using a connecting link, simplifying installation and maintenance.
• Cost-Effective: Generally less expensive than other high-torque flexible coupling types.
• Misalignment Accommodation: Tolerates small amounts of angular and parallel misalignment.
• Compact Design: Offers a relatively small diameter for its torque rating.

Components:

• Sprockets (Hubs): Two identical sprockets, typically made of steel with hardened teeth for wear resistance, bored and keyed to fit the shafts.
• Duplex Roller Chain: A standard double-strand roller chain wraps around both sprockets to transmit power.
• Cover (Optional but Recommended): A split cover (aluminium or plastic) is often used to retain lubricant (grease) and act as a safety guard.

Shreeji Gears: Your Ahmedabad Roller Chain Coupling Specialist

We manufacture robust roller chain couplings designed for reliable performance in demanding industrial environments.

Why Choose Shreeji Gears for Roller Chain Couplings?

• Quality Sprocket Manufacturing: Precision machining of sprockets from quality steel, ensuring accurate tooth profiles for optimal chain engagement.
• Tooth Hardening: Offering induction hardened teeth on sprockets for extended service life, especially in high load or abrasive conditions.
• Standard Chain Usage: Utilizing standard duplex roller chains (ANSI/ISO standards) for easy availability of replacements.
• Accurate Boring and Keying: Providing couplings with precise bore sizes and keyways to customer specifications for secure shaft mounting.
• Variety of Sizes: Manufacturing a wide range of standard roller chain coupling sizes covering various torque requirements.
• Optional Covers: Supplying durable aluminium or plastic covers for lubrication retention and safety.
• Quality Assurance: Rigorous checks on sprocket dimensions, tooth profiles, hardness (if applicable), and bore accuracy.

General Technical Specifications (Customizable):

• Type: Roller Chain Coupling.
• Sprocket Material: Steel (e.g., C45, EN8, EN9), Hardened Teeth option available.
• Chain Type: Standard Duplex Roller Chain (ANSI/BS/ISO standards).
• Bore Range: Wide range available based on coupling size (e.g., 10mm to 150mm+).
• Torque Rating: High torque capacity, specific values depend on size (Specify requirements).
• Max Speed: Suitable for low to moderate speeds (Generally up to 3600 RPM depending on size and lubrication).
• Misalignment: Angular (~1°), Parallel (~2% of chain pitch). Not suitable for significant axial movement.
• Lubrication: Grease lubrication required, typically applied during assembly and retained by a cover.
• Cover Material: Aluminium Alloy, Plastic (Optional).

Achieve simple, high-torque power transmission with minor misalignment capability. Select Shreeji Gears, your dependable roller chain coupling manufacturer in Ahmedabad. Contact us today to discuss your coupling needs!
