Roller Chain Sprocket

Understanding Roller Chain Sprockets: Positive Power Transmission

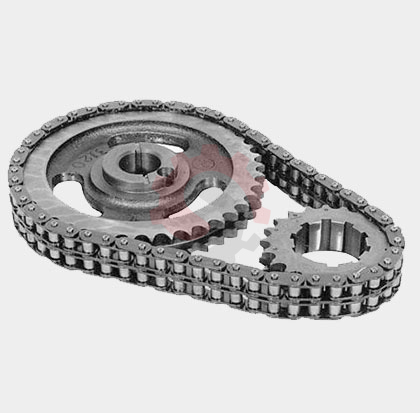

Roller chain drives consist of a driving sprocket, a driven sprocket, and a roller chain that meshes with the sprocket teeth. This mechanism provides a positive, non-slip means of transmitting power, maintaining a fixed speed ratio between the shafts. They are widely used across various industries due to their robustness and efficiency.

Key Types and Features:

• Standards: Manufactured to common standards ensuring interchangeability:
  • ANSI: American National Standards Institute (Common in North America).
  • BS/ISO: British Standard / International Organization for Standardization (Common in Europe and globally).
• Configuration:
  • Simplex: For single-strand roller chains.
  • Duplex: For double-strand roller chains (higher power capacity).
  • Triplex: For triple-strand roller chains (even higher power capacity).
• Hub Styles:
  • Type A (Plate Sprocket): Flat, no hub. Mounted via bolts or welding.
  • Type B: Hub projection on one side. Allows for bore, keyway, and set screw.
  • Type C: Hub projection on both sides. Provides more support and allows for larger bores.
• Bore Types:
  • Pilot Bore: Small initial bore, intended to be machined by the customer to the required size.
  • Finished Bore: Machined to a specific shaft size with standard keyway and set screw(s).
  • Taper Bore: Designed to accept a standard Taper Lock® bush for quick and easy mounting.
• Hardened Teeth: Teeth can be induction hardened to significantly increase wear resistance and sprocket life, especially in demanding applications.

Advantages:

• Positive Drive: No slippage, ensuring precise speed ratios.
• High Efficiency: Minimal power loss during transmission.
• Versatility: Can transmit power over relatively long center distances.
• Durability & Load Capacity: Robust design handles significant loads.
• Cost-Effective: Generally an economical power transmission solution.

Considerations:

• Lubrication: Requires proper and regular lubrication for optimal chain and sprocket life.
• Noise & Vibration: Can generate more noise than belt drives, especially at higher speeds.
• Wear & Elongation: Chains wear and elongate over time, requiring periodic tensioning or replacement. Sprocket teeth also wear.
• Alignment: Accurate shaft alignment is crucial for efficient operation and longevity.

Shreeji Gears: Your Expert Roller Chain Sprocket Manufacturer in Ahmedabad

As a dedicated manufacturer of power transmission components in Ahmedabad, Shreeji Gears has the expertise and machinery to produce high-quality roller chain sprockets.

Why Choose Shreeji Gears for Sprockets?

• Material Quality: Selection of appropriate materials (C45, EN8, EN9, EN19, EN24, SS304, SS316, Cast Iron) based on application requirements for strength and wear resistance.
• Precision Machining: Utilizing gear hobbing, milling, and shaping machines for accurate tooth profiles and pitch according to standards. Precise bore machining (finished or taper) and keyway cutting.
• Tooth Hardening: Offering induction hardening of sprocket teeth for significantly extended service life in abrasive or high-load conditions.
• Comprehensive Range: Manufacturing sprockets to ANSI, BS, ISO standards in Simplex, Duplex, Triplex configurations across a wide range of pitches and tooth counts.
• Quality Control: Rigorous inspection of dimensions, tooth form, concentricity, runout, and material specifications.
• Bore Options: Supplying sprockets with pilot bore, finished bore (keyway/set screw), or taper bore to suit various mounting methods.
• Custom Manufacturing: Ability to produce custom sprockets based on drawings or specifications, including non-standard pitches, materials, or special features.

General Technical Specifications (Customizable):

• Standards: ANSI (e.g., 25 to 240), BS/ISO (e.g., 04B to 72B)
• Types: Simplex, Duplex, Triplex, Plate Sprockets, Special Sprockets
• Pitch Range: e.g., 1/4" (6.35mm) to 3" (76.2mm) and larger
• Material: C45, EN8, EN9, EN19, EN24, EN353, 20MnCr5, SS304, SS316, Cast Iron
• Tooth Range: From small (e.g., 8 teeth) to large (e.g., 150+ teeth)
• Bore: Pilot Bore, Finished Bore (H7 tolerance, standard keyway), Taper Bore (for standard bushes)
• Heat Treatment: Teeth Induction Hardened (Typically 45-55 HRC)
• Surface Finish: Self-Colour, Black Oxide, Zinc Plated, Painted

Need reliable sprockets for your chain drive system? Choose Shreeji Gears, your expert roller chain sprocket manufacturer in Ahmedabad. Contact us today with your requirements for standard or custom sprockets and receive a competitive quote!
