Gear Coupling

Understanding Gear Couplings

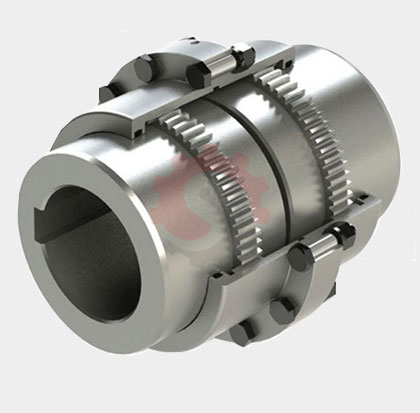

Gear couplings transmit torque through the meshing of external gear teeth on the hubs with internal gear teeth on the sleeve(s). The curvature (crowning) on the gear teeth allows the coupling to accommodate misalignment. Fully flexible (double engagement) types have two sleeves (or one continuous sleeve engaging two hubs) and accommodate all types of misalignment. Flex-rigid (single engagement) types have one geared hub and one rigid hub, primarily accommodating angular misalignment.

Key Advantages:

• High Torque Density: Can transmit significantly more torque than other flexible couplings of comparable size. Ideal as a high-torque-coupling.
• Excellent Misalignment Capability: Effectively handles substantial angular, parallel (fully flexible type), and axial misalignment.
• Robust Construction: Typically made from high-strength forged or alloy steel, suitable for harsh environments.
• Torsional Stiffness: Relatively high torsional stiffness, though less than disc couplings.

Considerations:

• Lubrication Required: Regular greasing or oil lubrication is essential to prevent wear on the gear teeth. Seals are critical to retain lubricant and exclude contaminants.
• Potential Backlash: Wear on the gear teeth over time can introduce backlash into the system.

Shreeji Gears: Your Ahmedabad Gear Coupling Specialist

We manufacture high-quality gear couplings designed for reliability and long service life in demanding power transmission applications.

Why Choose Shreeji Gears for Gear Couplings?

• Precision Gear Cutting: Accurate manufacturing of crowned external and internal gear teeth for optimal meshing and misalignment handling.
• Material Expertise: Selection and use of high-quality forged steel or alloy steel for hubs and sleeves.
• Heat Treatment: Controlled heat treatment processes to enhance strength, durability, and wear resistance of gear teeth.
• Effective Sealing Solutions: Incorporating reliable seals (e.g., O-rings) to ensure proper lubricant retention and prevent contamination ingress.
• Variety of Types & Sizes: Manufacturing both fully flexible and flex-rigid designs in a wide range of standard and custom sizes.
• Customization: Providing custom bore sizes, keyways, and configurations to meet specific application requirements.
• Application Engineering: Assisting customers in selecting the right heavy-duty-coupling for steel mills, cranes, conveyors, and other industrial machinery.
• Quality Control: Strict adherence to dimensional tolerances, gear quality standards, and material specifications.

General Technical Specifications (Customizable):

• Type: Fully Flexible (Double Engagement), Flex-Rigid (Single Engagement).
• Tooth Profile: Crowned (Standard), Straight.
• Material: Forged Steel (e.g., EN8, EN9, EN24), Alloy Steel.
• Hub/Sleeve Hardness: Specific hardness achieved through heat treatment (Induction Hardening, Nitriding etc.).
• Bore Range: Wide range available (e.g., 20mm to 500mm+).
• Torque Rating: High torque capacity (Specify requirements in kNm).
• Max Speed: Dependent on size, balance, and lubrication (Specify requirements).
• Misalignment: High Angular, Parallel (Double Engagement), Axial capability. Values depend on size.
• Lubrication: Grease (Standard) or Oil (for high speed/special applications).
• Seals: O-Rings, specialized seals.
• Standards: Can be manufactured to meet relevant AGMA or DIN standards.

Transmit maximum torque reliably in your heavy-duty applications. Partner with Shreeji Gears, your trusted gear coupling manufacturer in Ahmedabad. Contact us today to discuss your high-power transmission challenges!
