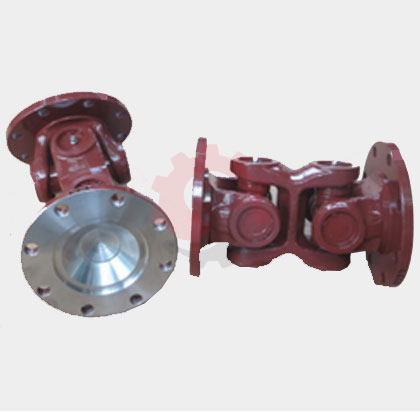

Drive Shaft

Understanding Drive Shafts

A drive shaft is a mechanical component designed to transmit rotational power (torque) from one point to another, typically when these points are misaligned or separated. In vehicles, it commonly connects the transmission output to the differential input. In industrial settings, it links motors to pumps, gearboxes, or other machinery.

Common Components:

• Shaft Tube: The main body of the shaft, usually hollow steel tubing for strength and light weight, but can be solid.
• Yokes: Connect the drive shaft tube to other components (like transmission, differential, or other shafts) and hold the universal joints. Common types include slip yokes (allowing length change) and end yokes.
• Universal Joints (U-Joints): Flexible joints (typically Cardan joints) located at each end (and sometimes in the middle) that allow the shaft to transmit power smoothly even when operating angles change due to suspension movement or misalignment.
• Center Support Bearing: Used in longer, two-piece drive shafts to support the middle section and prevent whipping at high speeds.

Importance of Balancing:

Drive shafts rotate at high speeds. Any imbalance, however small, creates significant vibration, leading to noise, discomfort, reduced efficiency, and potential damage to connected components (bearings, seals). Dynamic balancing is essential to counteract these imbalances by adding small weights at precise locations.

Shreeji Gears: Your Ahmedabad Drive Shaft Specialist

We combine robust materials, precision manufacturing, and critical balancing processes to produce drive shafts that meet the demands of modern powertrains and industrial systems.

Why Choose Shreeji Gears for Drive Shafts?

• Material Selection: Utilizing appropriate high-strength steel alloys (EN series, Chromoly), aluminium, or composites based on torque requirements, weight considerations, and operating environment.
• Precision Machining: Accurate turning of shaft tubes, CNC machining of yokes, and precise cutting of splines for slip yokes and connections.
• High-Quality Welding: Employing certified welding procedures for securely attaching yokes to tubes and joining sections in multi-piece shafts, ensuring structural integrity.
• Dynamic Balancing Expertise: Equipped with specialized balancing machines to dynamically balance drive shafts to precise ISO grades (e.g., G6.3 or better), ensuring vibration-free performance.
• Component Sourcing & Assembly: Using high-quality U-joints and center bearings (if applicable) and performing careful assembly to maintain alignment and functionality.
• Custom Manufacturing: Ability to produce drive shafts to specific lengths, diameters, yoke configurations, spline types, and torque ratings based on customer drawings or specifications.

General Technical Specifications (Customizable):

• Material: Steel Alloy (EN8, EN19, EN24, 4140, etc.), Aluminium Alloy.
• Type: One-Piece, Two-Piece (with Center Bearing).
• Tube Diameter & Wall Thickness: As per design requirements for torque and critical speed.
• Overall Length: Custom manufactured to specified length.
• Yoke Type & Size: Standard series (e.g., 1310, 1350, Spicer SPL) or custom yokes.
• Spline Specification: Standard or custom spline counts and profiles for slip yokes.
• Balancing Grade: ISO 1940 G6.3 or better (as required).
• Torque Rating: Designed to meet specific application torque requirements.

Ensure smooth, reliable, and vibration-free power transmission with our precision-engineered drive shafts. Choose Shreeji Gears, your expert drive shaft manufacturer in Ahmedabad. Contact us today to discuss your specific requirements!
