Compound Die

Compound Die Manufacturer - Shreeji Gears

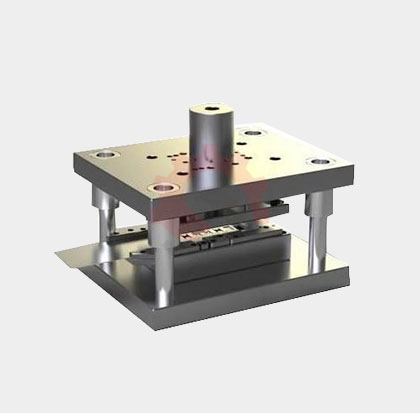

Precision Compound Dies

Shreeji Gears excels as a compound die manufacturer, designing and building high-precision tooling for demanding sheet metal stamping. Compound dies uniquely perform multiple cutting operations (e.g. blanking and piercing) within a single press stroke.

This design ensures exceptional accuracy in the relationship between features cut simultaneously, making them ideal for parts requiring high concentricity. We use premium tool steels and meticulous manufacturing for maximum die life.

Choose Shreeji Gears for advanced tool and die solutions.

Understanding Compound Dies

A compound die performs two or more cutting operations (like blanking an outer shape and piercing inner holes) at a single station during one press cycle. The cutting elements for these operations are integrated within the upper and lower die sections, acting simultaneously.

Key Advantages:

  • High Accuracy: Delivers excellent precision between features cut in the same stroke (e.g., concentricity of a hole within a blank) because the material doesn't move between cuts.
  • Suitable for Flat Parts: Primarily used for producing flat components where feature relationships and flatness are critical.
  • Single Station Efficiency: Completes multiple cuts without needing the long setup of a progressive die.

Considerations:

  • Complexity: More complex design and construction than simple dies, requiring higher precision in manufacturing.
  • Slower Production Rate: Typically slower than progressive dies due to the part ejection process required after each stroke.
  • Limited Forming: Primarily used for cutting operations; complex forming is not feasible.

Expert Compound Die Manufacturing

Our expertise in precision engineering enables us to design and manufacture compound dies that deliver superior accuracy and reliable performance.

Why Choose Shreeji Gears for Compound Dies?

  • Intricate Die Design: Advanced CAD capabilities to design complex dies with integrated punches, die elements, and ejectors, ensuring correct timing and function.
  • High-Precision Manufacturing: Utilizing CNC machining, Wire EDM, and precision grinding to achieve the extremely tight tolerances required for compound die components.
  • Premium Tool Steel Selection: Selecting appropriate high-wear-resistant tool steels (D2, HCHCr, M2) or carbide for cutting elements to maximize tool life.
  • Expert Heat Treatment: Precise control over hardening and tempering processes to optimize the performance characteristics of tool steel components.
  • Meticulous Assembly & Fitting: Skilled assembly ensuring perfect alignment and minimal clearance between mating cutting components.
  • Rigorous Tryout & Validation: Comprehensive testing to verify part accuracy, dimensional stability, and reliable ejection of both the part and scrap slugs.

General Technical Specifications (Customizable):

  • Die Type: Compound Die (Multi-Cut, Single Station).
  • Operations Performed: Typically Blanking + Piercing, Inner/Outer Contour Cutting.
  • Component Material: Tool Steel (D2, HCHCr, O1, A2, M2), Carbide.
  • Die Set Material: Mild Steel, Cast Iron.
  • Accuracy Achieved: High precision on feature relationships (Specify tolerance requirements).
  • Applicable Material: Steel, Stainless Steel, Aluminium, Copper, Brass (Specify thickness).
  • Press Compatibility: Designed for Mechanical/Hydraulic Presses (Specify tonnage and stroke).

Ensure high accuracy and precise feature relationships in your stamped parts. Choose Shreeji Gears, your specialist compound die manufacturing partner. Contact us today to discuss your high-precision tooling needs!
