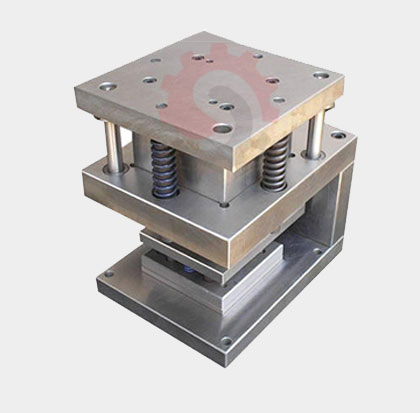

Simple Die

Understanding Simple Dies

A simple die is the most basic type of stamping die used in press working. Its defining characteristic is that it performs only one operation during a single stroke of the press ram. Common examples include:

• Blanking Die: Cuts the outer profile of a part from a sheet metal strip or coil. The cut-out piece is the desired product (the blank).
• Piercing Die (Punching Die): Creates holes or openings within a sheet metal part. The material removed (the slug) is scrap.
• Notching Die: Cuts away material from the edge of a strip or blank.

Key Advantages:

• Lower Initial Cost: Simpler design translates to lower manufacturing costs compared to progressive or compound dies.
• Easier Design & Build: Less complexity in construction.
• Simpler Maintenance: Easier to sharpen, repair, and maintain individual components.
• Flexibility: Can be used as standalone tools or as stages in a sequence of operations using multiple simple dies.

Limitations:

• Lower production rate compared to multi-station dies for complex parts.
• May require multiple setups and handling if several operations are needed on one part.

Shreeji Gears: Your Ahmedabad Simple Die Specialist

We specialize in the design and manufacturing of high-quality simple dies tailored to your specific sheet metal stamping needs.

Why Choose Shreeji Gears for Simple Dies?

• Expert Die Design: Utilizing CAD software for precise design of die components, ensuring proper clearances, alignment, and functionality.
• Material Selection Expertise: Choosing the appropriate tool steel (D2, O1, A2, HCHCr, etc.) or carbide based on material being stamped, production volume, and required tool life.
• Precision Manufacturing: Employing CNC machining, Wire EDM, and precision grinding for accurate production of punches, die blocks, and other components.
• Controlled Heat Treatment: In-house or partnered heat treatment facilities to achieve optimal hardness, toughness, and wear resistance for cutting elements.
• Accurate Assembly & Tryout: Careful assembly of die components and thorough tryout on presses to ensure correct operation, part quality, and smooth ejection.
• Cost-Effective Solutions: Providing competitive pricing for reliable simple die tooling.

General Technical Specifications (Customizable):

• Die Type: Simple Die (Single Operation).
• Operation: Blanking, Piercing, Notching, Simple Bending/Forming.
• Component Material: Tool Steel (D2, HCHCr, O1, A2, M2, etc.), Carbide.
• Die Set Material: Mild Steel, Cast Iron.
• Applicable Material: Mild Steel, Stainless Steel, Aluminium, Copper, Brass, etc. (Specify thickness range).
• Press Compatibility: Designed for Mechanical Presses, Hydraulic Presses (Specify tonnage range).
• Expected Tool Life: Varies greatly based on design, material, maintenance (Estimate provided based on requirements).

Get reliable and economical tooling for your basic sheet metal stamping operations. Choose Shreeji Gears, your expert simple die manufacturer in Ahmedabad. Contact us today to discuss your tool and die requirements!
