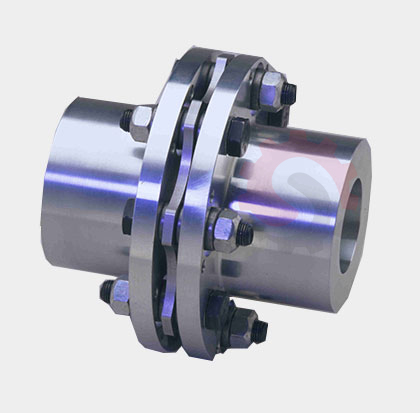

Disc Coupling

Understanding Disc Couplings

Disc couplings are a type of flexible shaft coupling that transmits torque via one or more thin metal disc packs bolted between driving and driven hubs. The flexibility of these discs allows the coupling to accommodate angular, parallel (with double disc pack designs), and axial misalignment between connected shafts.

Key Advantages:

• Zero Backlash: The metallic disc packs provide a backlash-free connection, essential for precise motion control applications like servo systems (ideal as a servo-coupling).
• High Torsional Stiffness: Disc couplings offer high resistance to twisting, ensuring accurate torque transmission with minimal angular wind-up. This makes them a torsionally-stiff-coupling choice.
• High Speed Capability: Their balanced, all-metal construction allows operation at high rotational speeds without significant vibration.
• Misalignment Accommodation: Effectively compensates for angular, axial, and (with double disc packs) parallel shaft misalignments.
• Maintenance-Free: Require no lubrication and have no wearing parts under normal operating conditions.
• Temperature Resistance: All-metal construction generally allows for operation over a wider temperature range compared to couplings with elastomeric elements.

Common Configurations:

• Single Disc Pack: Accommodates angular and axial misalignment.
• Double Disc Pack (with Spacer): Accommodates angular, axial, AND parallel misalignment. The spacer length can be customized.

Shreeji Gears: Your Ahmedabad Disc Coupling Specialist

We manufacture precision disc couplings designed for reliability and high performance in critical power transmission systems.

Why Choose Shreeji Gears for Disc Couplings?

• Precision Component Machining: Accurate manufacturing of hubs and spacers from steel or aluminium alloys.
• High-Quality Disc Packs: Utilizing durable, fatigue-resistant stainless steel discs (often spring steel) for the flexible element.
• Dynamic Balancing: Offering balancing services for high-speed applications to ensure smooth, vibration-free operation.
• Variety of Configurations: Manufacturing both single and double disc pack designs with options for spacer lengths.
• Custom Bore Sizes: Providing couplings with custom bore diameters, keyways, and set screw provisions to match specific shaft requirements.
• Application Expertise: Supplying disc couplings suitable for pump-coupling applications, compressors, fans, generators, machine tools, and servo drives.
• Quality Assurance: Rigorous checks on component dimensions, assembly accuracy, and balancing (where applicable).

General Technical Specifications (Customizable):

• Type: Single Disc Pack, Double Disc Pack (with spacer).
• Disc Material: Stainless Steel (High Grade Spring Steel).
• Hub/Spacer Material: Steel (Carbon/Alloy), Aluminium Alloy.
• Bore Range: Customizable based on coupling size (e.g., 10mm to 200mm+).
• Torque Rating: Wide range available (Specify requirements).
• Max Speed: High speed capability (Balancing required for optimal performance at high RPM).
• Misalignment: Angular, Axial, Parallel (Double Disc Pack). Specific values depend on size and design.
• Temperature Range: Suitable for wide temperature ranges (typically -40°C to +150°C or higher depending on design).

Ensure precise, reliable, high-speed power transmission with zero backlash. Select Shreeji Gears, your expert disc coupling manufacturer in Ahmedabad. Contact us today to discuss your high-performance coupling needs!
