Double Single Sprocket

Understanding Double Single Sprockets

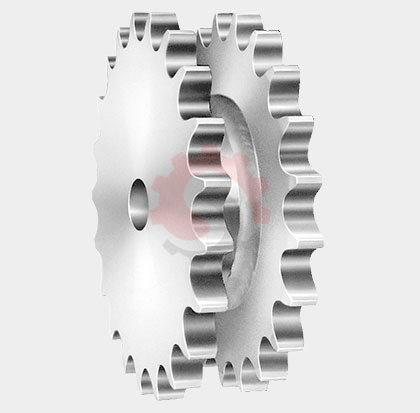

A double single sprocket is essentially two separate single-strand sprockets, typically of the same pitch and tooth count, that are either precisely welded together or machined from a single piece of material with a specific, defined gap between the two sets of teeth. Its primary purpose is to engage and drive two independent, parallel single-strand roller chains simultaneously from one drive shaft.

Key Characteristics & Advantages:

• Synchronized Drive: Ensures that two separate chains move at the exact same speed, crucial for coordinated operations. Ideal for synchronized-drive-sprocket needs.
• Space Efficiency: More compact than installing two completely separate single sprockets with individual hubs and mounting hardware.
• Simplified Design: Allows driving two parallel chain systems from a single motor/gearbox output.
• Construction: Can be fabricated by welding two standard sprockets to a common hub or machined from a solid blank for superior concentricity and strength.
• Chain Compatibility: Designed for use with standard ANSI or BS/ISO single-strand roller chains.

Applications:

Double single sprockets are commonly used in packaging machinery, printing presses, synchronized conveyor systems, agricultural equipment, and any application requiring the coordinated driving of two parallel chain runs.

Shreeji Gears: Your Ahmedabad Double Single Sprocket Expert

We manufacture high-precision double single sprockets ensuring accurate spacing and tooth alignment for reliable synchronous operation.

Why Choose Shreeji Gears for Double Single Sprockets?

• Precision Machining & Fabrication: Accurate machining of individual sprockets and precise welding/assembly, or direct machining from solid for optimal alignment and concentricity.
• Accurate Spacing: Maintaining tight tolerances on the distance between the two sprocket centerlines as per customer requirements.
• Material Quality: Utilizing quality steel (Carbon Steel, Alloy Steel, Stainless Steel) suitable for the application's load and environmental conditions.
• Tooth Hardening: Offering induction hardened teeth for enhanced wear resistance and prolonged operational life.
• Custom Design: Manufacturing custom double single sprockets based on required chain pitch, number of teeth, spacing between chains, bore size, keyway, and material specifications.
• Quality Assurance: Verifying dimensional accuracy, concentricity, tooth profiles, and the parallelism of the sprocket teeth sets.
• Versatility: Producing double single sprockets for a wide range of standard chain sizes used in parallel-chain-drive systems.

General Technical Specifications (Customizable):

• Chain Pitch Compatibility: Standard ANSI (e.g., 40, 50, 60, 80), BS/ISO (e.g., 08B, 10B, 12B, 16B).
• Tooth Count: Same tooth count for both sprockets, wide range available.
• Spacing: Distance between sprocket centerlines manufactured to customer specification.
• Material: Carbon Steel (C45, EN8, EN9), Alloy Steel, Stainless Steel (SS304, SS316).
• Tooth Hardening: Optional (Induction Hardened).
• Bore Type: Pilot Bore, Finished Bore (Keyed/Plain).
• Construction: Machined from Solid or Fabricated (Welded).

Achieve perfectly synchronized parallel chain drives with compact sprockets. Choose Shreeji Gears, your trusted double single sprocket manufacturer in Ahmedabad. Contact us today to discuss your specific requirements and get a quote!
